Page 45 - CanaDream 2025 TCA English
P. 45

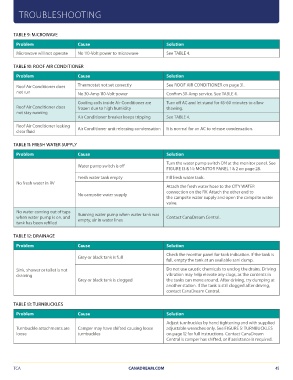

TROUBLESHOOTING
TABLE 9: MICROWAVE Cause Solution
Problem No 110-Volt power to microwave See TABLE 4.
Microwave will not operate
TABLE 10: ROOF AIR CONDITIONER
Problem Cause Solution
See ROOF AIR CONDITIONER on page 31.
Roof Air Conditioner does Thermostat not set correctly Confirm 30-Amp service. See TABLE 4.
not run No 30-Amp 110-Volt power Turn off AC and let stand for 45-60 minutes to allow
thawing.
Roof Air Conditioner does Cooling coils inside Air Conditioner are See TABLE 4.
not stay running frozen due to high humidity
It is normal for an AC to release condensation.
Air Conditioner breaker keeps tripping
Roof Air Conditioner leaking Air Conditioner unit releasing condensation
clear fluid
TABLE 11: FRESH WATER SUPPLY
Problem Cause Solution
Water pump switch is off Turn the water pump switch ON at the monitor panel. See
FIGURE 13 & 14: MONITOR PANEL 1 & 2 on page 28.
Fresh water tank empty
Fill fresh water tank.
No fresh water in RV
Attach the fresh water hose to the CITY WATER
No campsite water supply connection on the RV. Attach the other end to
the campsite water supply and open the campsite water
No water coming out of taps Running water pump when water tank was valve.
when water pump is on, and empty, air in water lines
tank has been refilled Contact CanaDream Central.
TABLE 12: DRAINAGE Cause Solution
Problem Grey or black tank is full
Check the monitor panel for tank indication. If the tank is
Sink, shower or toilet is not Grey or black tank is clogged full, empty the tank at an available sani dump.
draining
Do not use caustic chemicals to unclog the drains. Driving
vibration may help elevate any clogs, as the contents in
the tanks can move around. After driving, try dumping at
another station. If the tank is still clogged after driving,
contact CanaDream Central.
TABLE 13: TURNBUCKLES Cause Solution
Problem
Adjust turnbuckles by hand tightening and with supplied
Turnbuckle attachments are Camper may have shifted causing loose adjustable wrenches only. See FIGURE 5: TURNBUCKLES
on page 12 for full instructions. Contact CanaDream
loose turnbuckles Central is camper has shifted, or if assistance is required.
TCA CANADREAM.COM 45
