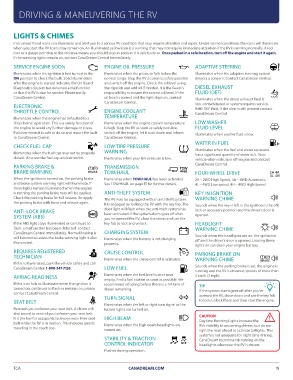

DRIVING & MANEUVERING THE RV
LIGHTS & CHIMES
Instrument Panel icons can illuminate and alert you to a serious RV condition that may require attention and repair. Under normal conditions the icons will illuminate
when you start the RV. Icons may remain on. An illuminated yellow icon is a warning that may not require immediate attention if the RV is running normally. A red
icon or a gauge pointing to the red area means you should stop as soon as it is safe to do so. Once parked in a safe location, turn off the engine and start it again.
If the warning lights remain on, contact CanaDream Central immediately.
SERVICE ENGINE SOON ENGINE OIL PRESSURE ADAPTIVE STEERING
Illuminates when the ignition is first turned to the Illuminates when the pressure falls below the Illuminates when the adaptive steering system
ON position to check the bulb. Solid illumination normal range. Stop the RV as soon as safely possible detects a concern. Contact CanaDream Central.
after the engine is started indicates the On Board and switch off the engine. Check the oil level using
Diagnostics System has detected a malfunction the dipstick and add oil if needed. It is the Guest’s DIESEL EXHAUST
or that the RV is due for service. Please notify responsibility to ensure the correct oil level. If the FLUID (DEF)
CanaDream Central. oil level is correct and the light stays on, contact
CanaDream Central. Illuminates when the diesel exhaust fluid is
ELECTRONIC low, contaminated or system requires service.
THROTTLE CONTROL ENGINE COOLANT Refill DEF fluid, if the alert is still present contact
TEMPERATURE CanaDream Central.
Illuminates when the engine has defaulted to a
‘limp-home’ operation. This is a safety function of Illuminates when the engine coolant temperature LOW WASHER
the engine to avoid any further damage or stress. is high. Stop the RV as soon as safely possible, FLUID LEVEL
Pull over when it is safe to do so and report the fault switch off the engine, let it cool down and inform
to CanaDream Central. CanaDream Central. Illuminates when washer fluid is low.
CHECK FUEL CAP LOW TIRE PRESSURE WATER IN FUEL
WARNING
Illuminates when the fuel cap may not be properly Illuminates when the fuel and water separator
closed. Unscrew the fuel cap and reinsert it. Illuminates when your tire pressure is low. has a significant quantity of water in it. Stop
vehicle when safe, turn off engine and contact
PARKING BRAKE & TRANSMISSION CanaDream Central.
BRAKE WARNING TOW/HAUL
FOUR-WHEEL DRIVE
When the ignition is turned on, the parking brake Illuminates when TOW/HAUL has been activated.
and brake system warning light will illuminate. If See TOW/HAUL on page 15 for further details. 2H – 2WD High Speed, 4A – 4WD Automatic,
these lights remain illuminated when the engine 4L – 4WD Low speed, 4H – 4WD High Speed
is running the parking brake may still be applied. ANTI-THEFT SYSTEM
Check the parking brake for full release. Re-apply KEY IN IGNITION
the parking brake with force and release again. The RV may be equipped with an anti-theft system. WARNING CHIME
It is engaged by locking the RV with the key fob. The
ANTI-LOCK BRAKE door light will flash when the anti-theft system has Sounds when the key is left in the ignition in the off/
SYSTEM (ABS) been activated. If the system alarm goes off after lock or accessory position and the driver’s door is
you’ve opened the RV, close the doors and use the opened.
If the ABS light stays illuminated or continues to key fob to lock and unlock.
flash, a malfunction has been detected; contact HEADLIGHT
CanaDream Central immediately. Normal braking is CHARGING SYSTEM WARNING CHIME
still functional unless the brake warning light is also
illuminated. Illuminates when the battery is not charging Sounds when the headlights are on, the ignition is
properly. off and the driver’s door is opened. Leaving these
REQUIRES REGISTERED lights on can drain your engine battery.
TECHNICIAN CRUISE CONTROL
PARKING BRAKE ON
If this is illuminated, park the vehicle safely and call Illuminates when the cruise control is activated. WARNING CHIME
CanaDream Central 1-800-347-7126.
LOW FUEL Sounds when the parking brake is set, the engine is
AIRBAG READINESS running and the RV is driven at speeds of more than
Illuminates when the fuel level is at or near 5 km/h (3 mph).
If this icon fails to illuminate when the ignition is empty. Find a fuel station as soon as possible. We
turned on, continues to flash or remains on, please recommend refueling before there is a 1/4 tank of TIP
contact CanaDream Central. diesel remaining. If the system alarm goes off after you’ve
opened the RV, close doors and use the key fob
SEAT BELT TURN SIGNAL to lock/unlock them and then start the engine.
Reminds you to fasten your seat belt. A chime will Illuminates when the left or right turn signal or the CAUTION
also sound to remind you to fasten your seat belt. hazard lights are turned on. Daytime Running Lights increase the
It is the law for occupants to always wear their seat RVs visibility to oncoming drivers, but do not
belt while the RV is in motion. This includes guests HIGH BEAM light the road ahead or activate taillights. This
traveling in the coach too. system is not adequate for night time driving.
Illuminates when the high beam headlights are CanaDream recommends turning on the
turned on. headlights whenever the RV is driven.
STABILITY & TRACTION
CONTROL INDICATOR
Flashes during operation.
TCA CANADREAM.COM 19
