PARKING, CAMPING & ENJOYING THE RV
FRESH WATER TANK FILL CAMPSITE/CITY WATER HOOK UP
The RV is supplied with a fresh water hose for filling the fresh There is an outside connection for the city water hookup on
water tank. the driver's side of the RV. City water is provided at campsites with a
1. Connect the water hose to a campsite water source (tap). full hookup.
2. Insert the other end into the FRESH WATER INTAKE. A fresh water hose is supplied with the RV, attach one end to the
3. Open the campsite water valve part way and fill the water tank campsite water supply and the other to the connector on the side
of the RV. Open the campsite water supply to 1/3 and check both
slowly. Once the tank is full, water will start flowing out from ends for leaks.
underneath the vehicle. High water pressure may prevent the See FIGURE 11: CAMPSITE/CITY WATER HOOK UP on this page.
tank from filling efficiently.
To access the water in the fresh water tank, use the water pump. WASTE TANK HOOK UP
The water pump switch is on the monitor panel. The water in the
fresh water tank is safe for cooking and cleaning. CanaDream See FIGURE 27: DRAINING THE WASTE TANKS on page 35.
recommends bottled water for drinking.
See FIGURE 11: FRESH WATER FILL on this page. CAUTION
Troubleshooting: See TABLE 11: FRESH WATER SUPPLY on page 45. Always ensure to connect to the city water connection.
Never connect the water hose to the black tank flush
TIP attachment. Do not use the city water connection in cold
Careful usage and monitoring of RV resources as you conditions or freezing weather.
use them avoids problems. Always be aware of the rate at which
you are using fresh water, propane, available battery power, and CAUTION
waste tank capacity. Check Monitor Panel readings regularly. Make sure there is water in the fresh water tank before
using the water pump. Running the pump with no water can
CAUTION lead to damage and may render the system inoperable.
While using city water hookup DO NOT RUN THE
WATER PUMP. TIP
If installed, the metal water pressure regulator on the
FRESH WATER end of the water hose should always be used.
INTAKE
CITY WATER
ENTRÉE D’EAU CONNECTION
DOUCE EAU DE VILLE
FRISCH CONNECTION
CITY WASSER
WASSEREINLASS ANSCHLUSS
INSERT INTO SCREW INTO
VEHICLE OUTLET VEHICLE OUTLET

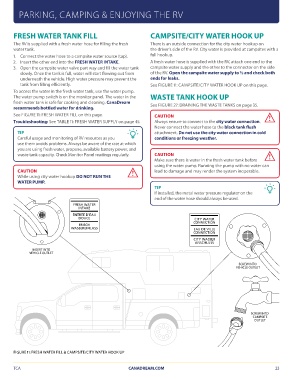

FIGURE 11: FRESH WATER FILL & CAMPSITE/CITY WATER HOOK UP SCREW INTO
TCA CANADREAM.COM CAMPSITE
OUTLET
23
