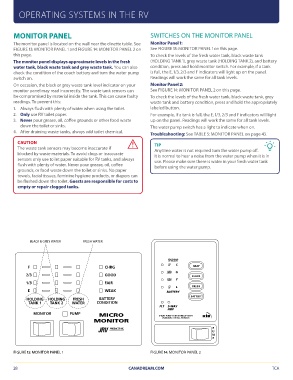

OPERATING SYSTEMS IN THE RV
MONITOR PANEL SWITCHES ON THE MONITOR PANEL
The monitor panel is located on the wall near the dinette table. See Monitor Panel 1:
FIGURE 13: MONITOR PANEL 1 and FIGURE 14: MONITOR PANEL 2 on See FIGURE 13: MONITOR PANEL 1 on this page.
this page.
To check the levels of the fresh water tank, black waste tank
The monitor panel displays approximate levels in the fresh (HOLDING TANK 1), grey waste tank (HOLDING TANK 2), and battery
water tank, black waste tank and grey waste tank. You can also condition, press and hold monitor switch. For example, if a tank
check the condition of the coach battery and turn the water pump is full, the E, 1/3, 2/3 and F indicators will light up on the panel.
switch on. Readings will work the same for all tank levels.
On occasion, the black or grey waste tank level indicator on your Monitor Panel 2:
monitor panel may read incorrectly. The waste tank sensors can See FIGURE 14: MONITOR PANEL 2 on this page.
be compromised by material inside the tank. This can cause faulty
readings. To prevent this: To check the levels of the fresh water tank, black waste tank, grey
waste tank and battery condition, press and hold the appropriately
1. Always flush with plenty of water when using the toilet. labeled button.
2. Only use RV toilet paper.
3. Never pour grease, oil, coffee grounds or other food waste For example, if a tank is full, the E, 1/3, 2/3 and F indicators will light
up on the panel. Readings will work the same for all tank levels.
down the toilet or sinks.
4. After draining waste tanks, always add toilet chemical. The water pump switch has a light to indicate when on.
CAUTION Troubleshooting: See TABLE 5: MONITOR PANEL on page 43.
The waste tank sensors may become inaccurate if
blocked by waste materials. To avoid clogs or inaccurate TIP
sensors only use toilet paper suitable for RV tanks, and always Anytime water is not required turn the water pump off.
flush with plenty of water. Never pour grease, oil, coffee It is normal to hear a noise from the water pump when it is in
grounds, or food waste down the toilet or sinks. No paper use. Please make sure there is water in your fresh water tank
towels, facial tissues, feminine hygiene products, or diapers can before using the water pump.
be flushed down the toilet. Guests are responsible for costs to
empty or repair clogged tanks.
BLACK & GREY WATER FRESH WATER
F CHRG TANKS GRAY
2/3 GOOD FC BLACK
1/3 FAIR FRESH
E WEAK 2/3 G BATTERY
HOLDING HOLDING BATTERY
CONDITION 1/3 F
TANK 1 TANK 2
MICRO EL
MONITOR BATTERY
FRESH FLT 3-WAY
WATER PMP
MONITOR PUMP 3-WAY PUMP FUNCTIONALITY NOT
AVAILABLE ON ALL MODELS
P
U
M
P
FIGURE 13: MONITOR PANEL 1 FIGURE 14: MONITOR PANEL 2
28 CANADREAM.COM TCA
