Page 31 - CanaDream 2025 TCA English

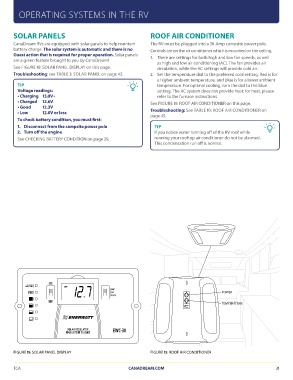

P. 31
OPERATING SYSTEMS IN THE RV
SOLAR PANELS ROOF AIR CONDITIONER
CanaDream RVs are equipped with solar panels to help maintain The RV must be plugged into a 30-Amp campsite power pole.
battery charge. The solar system is automatic and there is no
Guest action that is required for proper operation. Solar panels Controls are on the air conditioner which is mounted on the ceiling.
are a green feature brought to you by CanaDream!
1. There are settings for both high and low fan speeds, as well
See FIGURE 18: SOLAR PANEL DISPLAY on this page. as high and low air conditioning (AC). The fan provides air
Troubleshooting: see TABLE 3: SOLAR PANEL on page 42. circulation, while the AC settings will provide cold air.
TIP 2. Set the temperature dial to the preferred cold setting. Red is for
Voltage readings: a higher ambient temperature, and blue is for a lower ambient
• Charging 13.0V+ temperature. For optimal cooling, turn the dial to the blue
• Charged 12.6V setting. The AC system does not provide heat; for heat, please
• Good 12.2V refer to the furnace instructions.
• Low 12.0V or less
See FIGURE 19: ROOF AIR CONDITIONER on this page.
To check battery condition, you must first:
Troubleshooting: See TABLE 10: ROOF AIR CONDITIONER on
1. Disconnect from the campsite power pole page 45.
2. Turn off the engine
TIP
See CHECKING BATTERY CONDITION on page 29. If you notice water running off of the RV roof while
running your rooftop air conditioner do not be alarmed.
This condensation run off is normal.
SOLAR POWER SEALED
ÉNERGIE SOLAIRE SCELLÉE
CHARGING AMP AMP
EN CHARGE OFF
VOLTS POWER
TEMPERATURE
FLOODED
HUMIDE
SOLAR REGULATOR EWC-30 31
RÉGULATEUR SOLAIRE
FIGURE 19: ROOF AIR CONDITIONER
FIGURE 18: SOLAR PANEL DISPLAY CANADREAM.COM
