Page 32 - CanaDream 2025 TCA English

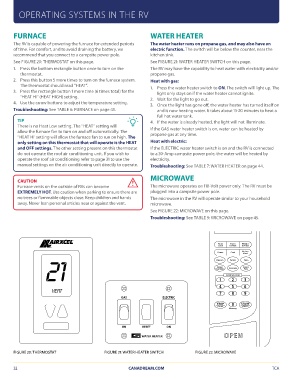

P. 32
OPERATING SYSTEMS IN THE RV
FURNACE WATER HEATER
The RV is capable of powering the furnace for extended periods The water heater runs on propane gas, and may also have an
of time. For comfort, and to avoid draining the battery, we electric function. The switch will be below the counter, near the
recommend that you connect to a campsite power pole. kitchen sink.
See FIGURE 20: THERMOSTAT on this page. See FIGURE 21: WATER HEATER SWITCH on this page.
1. Press the bottom rectangle button once to turn on the The RV may have the capability to heat water with electricity and/or
thermostat. propane gas.
Heat with gas:
2. Press this button 5 more times to turn on the furnace system. 1. Press the water heater switch to ON. The switch will light up. The
The thermostat should read “HEAT”.
light only stays on if the water heater cannot ignite.
3. Press the rectangle button 1 more time (6 times total) for the 2. Wait for the light to go out.
"HEAT HI" (HEAT HIGH) setting. 3. Once the light has gone off, the water heater has turned itself on
4. Use the arrow buttons to adjust the temperature setting. and is now heating water. It takes about 15-20 minutes to heat a
Troubleshooting: See TABLE 6: FURNACE on page 43. full hot water tank.
4. If the water is already heated, the light will not illuminate.
TIP
There is no Heat Low setting. The "HEAT" setting will If the GAS water heater switch is on, water can be heated by
allow the furnace fan to turn on and off automatically. The propane gas at any time.
"HEAT HI' setting will allow the furnace fan to run on high. The Heat with electric:
only setting on this thermostat that will operate is the HEAT
and OFF settings. The other setting present on this thermostat If the ELECTRIC water heater switch is on and the RV is connected
do not operate the roof air conditioning unit. If you wish to to a 30-Amp campsite power pole, the water will be heated by
operate the roof air conditioning refer to page 31 to use the electricity.
manual settings on the air conditioning unit directly to operate. Troubleshooting: See TABLE 7: WATER HEATER on page 44.
CAUTION MICROWAVE
Furnace vents on the outside of RVs can become
EXTREMELY HOT. Use caution when parking to ensure there are The microwave operates on 110-Volt power only. The RV must be
no trees or flammable objects close. Keep children and hands plugged into a campsite power pole.
away. Never lean personal articles near or against the vent.
The microwave in the RV will operate similar to your household
microwave.
See FIGURE 22: MICROWAVE on this page.
Troubleshooting: See TABLE 9: MICROWAVE on page 45.
Timer Timer Weight
Cook Defrost Defrost
Power Kitchen
Cook Timer
21 Popcorn Potato Pizza
HEAT
Frozen Beverage Dinner
FIGURE 20: THERMOSTAT Vegetable Plate
32
GAS ELECTRIC EXPRESS COOK
123
456
789
STOP 0 START
+30SEC.
Cancel Memory
ON RESET ON OPEN
WATER HEATER
FIGURE 22: MICROWAVE
FIGURE 21: WATER HEATER SWITCH
CANADREAM.COM TCA
