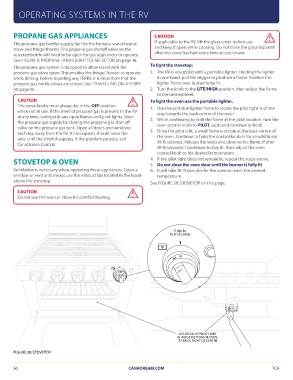

P. 36
OPERATING SYSTEMS IN THE RV
PROPANE GAS APPLIANCES CAUTION
If applicable to the RV, lift the glass cover before use
The propane gas bottles supply fuel for the furnace, water heater, and keep it open while cooking. Do not close the glass top until
stove and fridge/freezer. The propane gas shutoff valve on the after the stove has had some time to cool down.
selected bottle will need to be open for gas appliances to operate.
See FIGURE 9: PROPANE TANKS & BOTTLE SELECTOR on page 16. To light the stovetop:
The propane gas system is designed to allow travel with the 1. The RV is equipped with a portable lighter. Holding the lighter
propane gas valve open. This enables the fridge/ freezer to operate in one hand, pull the trigger to produce a flame. Position the
while driving. Before boarding any FERRY, it is important that the lighter flame over burner to be lit.
propane gas bottle valves are closed. See TRAVELLING ON A FERRY
on page 16. 2. Turn the knob to the LITE/HIGH position, then adjust the flame
to the desired level.
CAUTION
The stove knobs must always be in the OFF position To light the oven use the portable lighter.
when not in use. If the smell of propane gas is present in the RV
at any time, extinguish any open flames and pilot lights. Stop 1. Use the portable lighter flame to locate the pilot light ¾ of the
the propane gas supply by closing the propane gas shut off way towards the back centre of the oven.
valve on the propane gas tank. Open all doors and windows
and step away from the RV. All occupants should leave the 2. While continuing to hold the flame at the pilot location, turn the
area until the smell dissipates. If the problem persists, call oven control knob to PILOT, push and continue to hold.
CanaDream Central.
3. Once the pilot is lit, a small flame is visible at the back centre of
STOVETOP & OVEN the oven. Continue to hold the control knob in for an additional
10-15 seconds. Release the knob and observe the flame. If after
Ventilation is necessary when operating these appliances. Open a 10-15 seconds it continues to stay lit, then adjust the oven
window or vent and always use the exhaust fan located in the hood control knob to the desired temperature.
above the stovetop.
4. If the pilot light does not remain lit, repeat the steps above.
CAUTION 5. Do not close the oven door until the burner is fully lit.
Do not use the oven or stove for comfort heating. 6. It will take 10-15 minutes for the oven to reach the desired
temperature.
See FIGURE 28: STOVETOP on this page.
TURN TO
PILOT (FLAME)
°F
OFF
°F
OFF OFF OFF OFF
FIGURE 28: STOVETOP LOCATION OF PILOT LIGHT TCA
36 IS INSIDE BOTTOM OF OVEN,
AT BACK, RIGHT OF CENTRE
CANADREAM.COM
