Page 26 - CanaDream 2025 TCA English

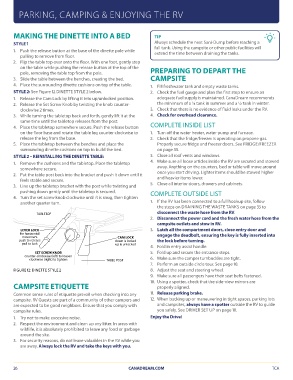

P. 26
PARKING, CAMPING & ENJOYING THE RV
MAKING THE DINETTE INTO A BED TIP
Always schedule the next Sani-Dump before reaching a
STYLE 1 full tank. Using the campsite or other public facilities will
extend the time between draining the tanks.
1. Push the release button at the base of the dinette pole while
pulling to remove from floor. PREPARING TO DEPART THE
CAMPSITE
2. Flip the table top over onto the floor. With one foot, gently step
on the table while pushing the release button at the top of the 1. Fill freshwater tank and empty waste tanks.
pole, removing the table top from the pole. 2. Check the fuel gauge and plan the first stop to ensure an
3. Slide the table between the benches, creating the bed. adequate fuel supply is maintained. CanaDream recommends
4. Place the surrounding dinette cushions on top of the table. the minimum of a ¼ tank in summer and a ½ tank in winter.
3. Check that there is no evidence of fluid leaks under the RV.
STYLE 2: See Figure 12 DINETTE STYLE 2 below. 4. Check for overhead clearance.
1. Release the Cam Lock by lifting it into up/unlocked position. COMPLETE INSIDE LIST
2. Release the Set Screw Knob by twisting the knob counter-
1. Turn off the water heater, water pump and furnace.
clockwise 2 times. 2. Check that the fridge/freezer is operating on propane gas.
3. While turning the tabletop back and forth, gently lift it at the
Properly secure fridge and freezer doors. See FRIDGE/FREEZER
same time until the tabletop releases from the post. on page 33.
4. P lace the tabletop somewhere secure. Push the release button 3. Close all roof vents and windows.
4. Make sure all loose articles inside the RV are secured and stowed
on the floor base and rotate the table leg counter clockwise to away. Anything on the counters, bed or table will move around
release the leg from the base. once you start driving. Lighter items should be stowed higher
5. Place the tabletop between the benches and place the and heavier items lower.
surrounding dinette cushions on top to build the bed. 5. Close all interior doors, drawers and cabinets.
STYLE 2 – REINSTALLING THE DINETTE TABLE: COMPLETE OUTSIDE LIST
1. Remove the cushions and the tabletop. Place the tabletop 1. If the RV has been connected to a full hookup site, follow
somewhere secure. the steps on DRAINING THE WASTE TANKS on page 35 to
disconnect the waste hose from the RV.
2. Put the table post back into the bracket and push it down until it
feels stable and secure. 2. Disconnect the power cord and the fresh water hose from the
campsite outlets and stow in RV.
3. Line up the tabletop bracket with the post while twisting and
pushing down gently until the tabletop is secured. 3. Latch all the compartment doors, close entry door and
engage the deadbolt, ensuring the key is fully inserted into
4. Turn the set screw knob clockwise until it is snug, then tighten the lock before turning.
another quarter turn.
4. Fold in entry assist handle.
TABLETOP 5. Fold up and secure the entrance steps.
6. Make sure the camper turnbuckles are tight.
LEVER LOCK CAM LOCK 7. Perform an outside circle tour. See page 10.
for horizontal down is locked 8. Adjust the seat and steering wheel.
up is unlocked 9. Make sure all passengers have their seat belts fastened.
movement TABLE POST 10. Using a spotter, check that the side-view mirrors are
push to release
properly aligned.
pull to lock 11. Release parking brake.
SET SCREW KNOB 12. When backing up or maneuvering in tight spaces, parking lots
counter-clockwise (left) to loosen and campsites, always have a spotter outside the RV to guide
clockwise (right) to tighten you safely. See DRIVER SET UP on page 10.
FIGURE 12: DINETTE STYLE 2 Enjoy the Drive!
CAMPSITE ETIQUETTE
Common sense rules of etiquette prevail when checking into any
campsite. RV Guests are part of a community of other campers and
are expected to be good neighbors. Ensure that you comply with
campsite rules.
1. Try not to make excessive noise.
2. Respect the environment and clean up any litter. In areas with
wildlife, it is absolutely prohibited to leave any food or garbage
around the site.
3. For security reasons, do not leave valuables in the RV while you
are away. Always lock the RV and take the keys with you.
26 CANADREAM.COM TCA
